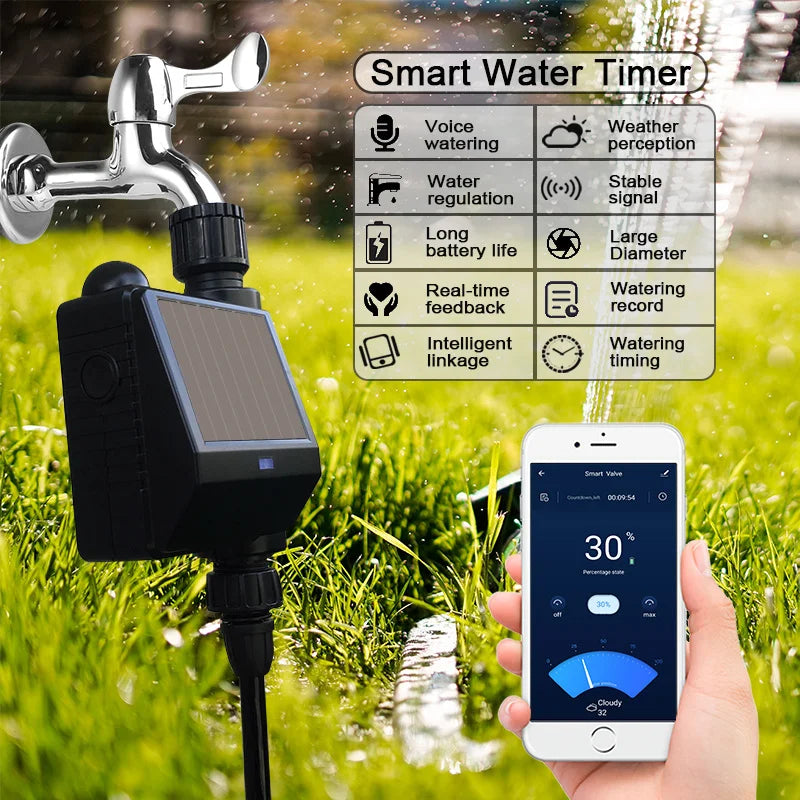

Main Funtion:

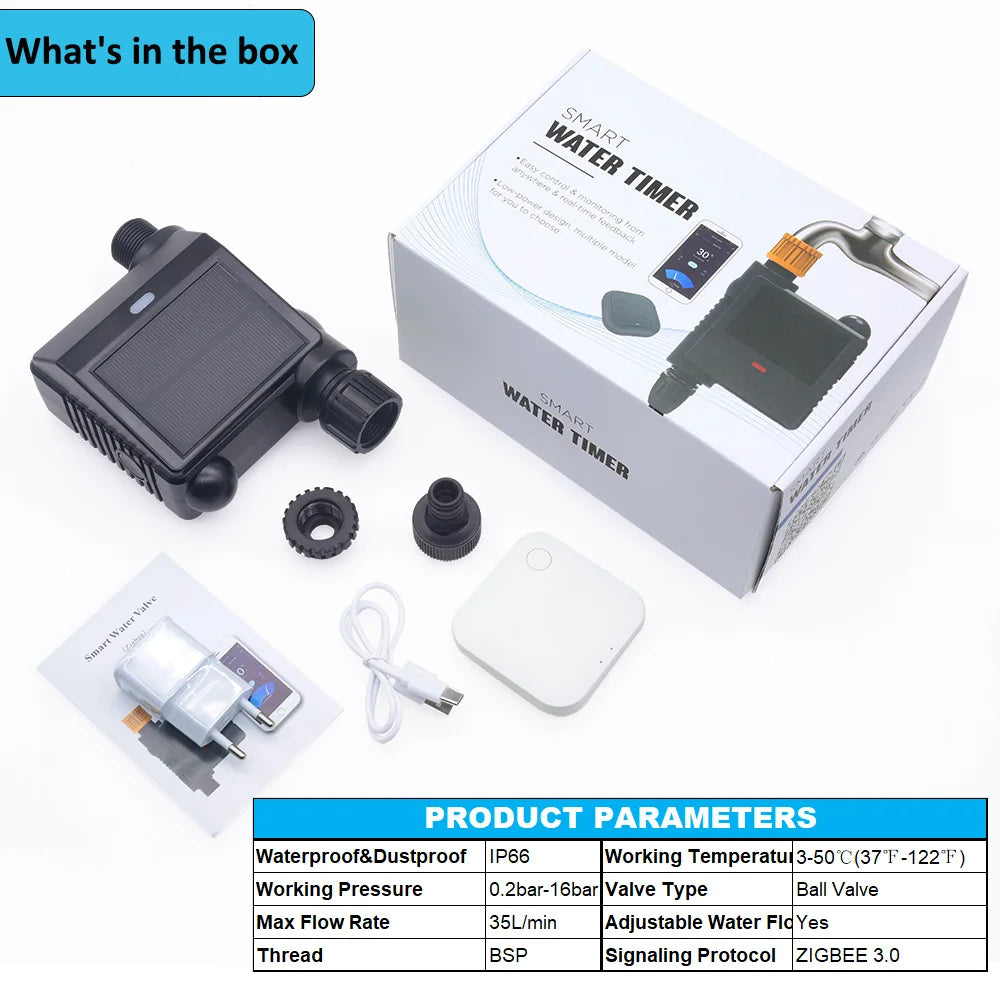

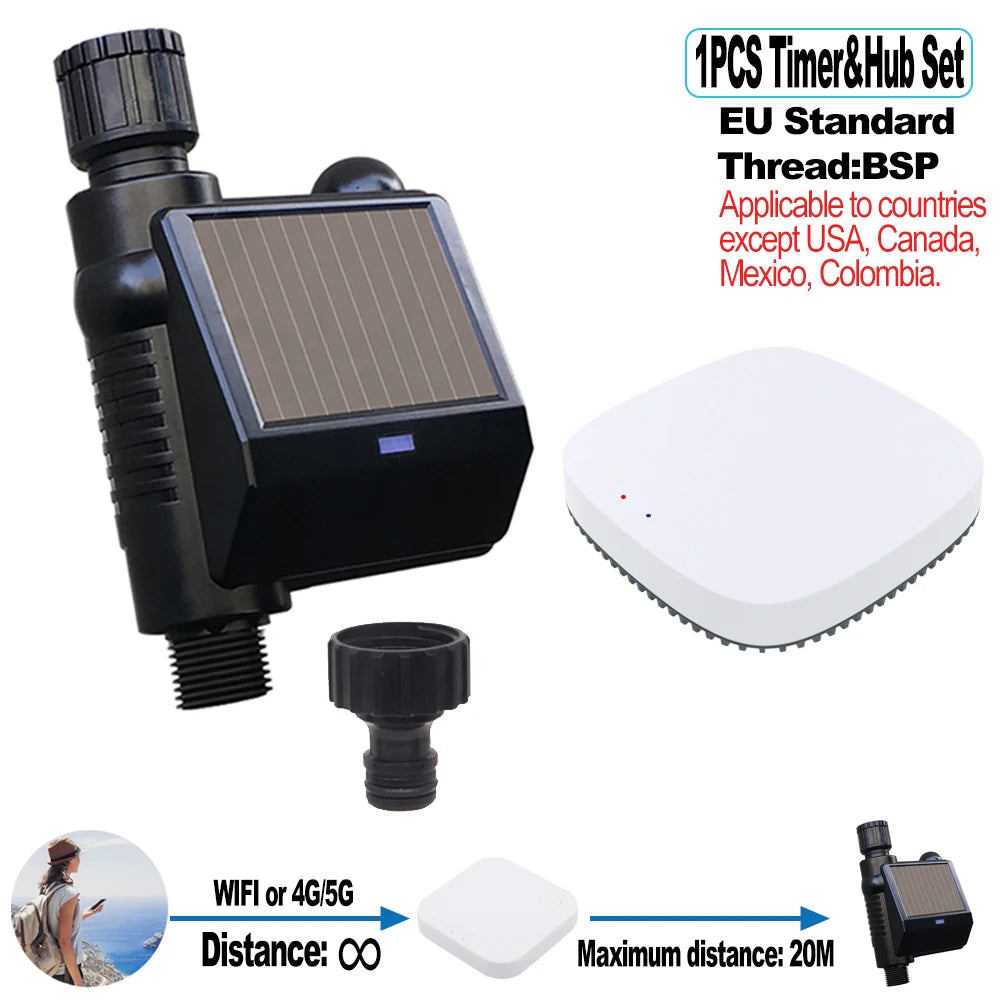

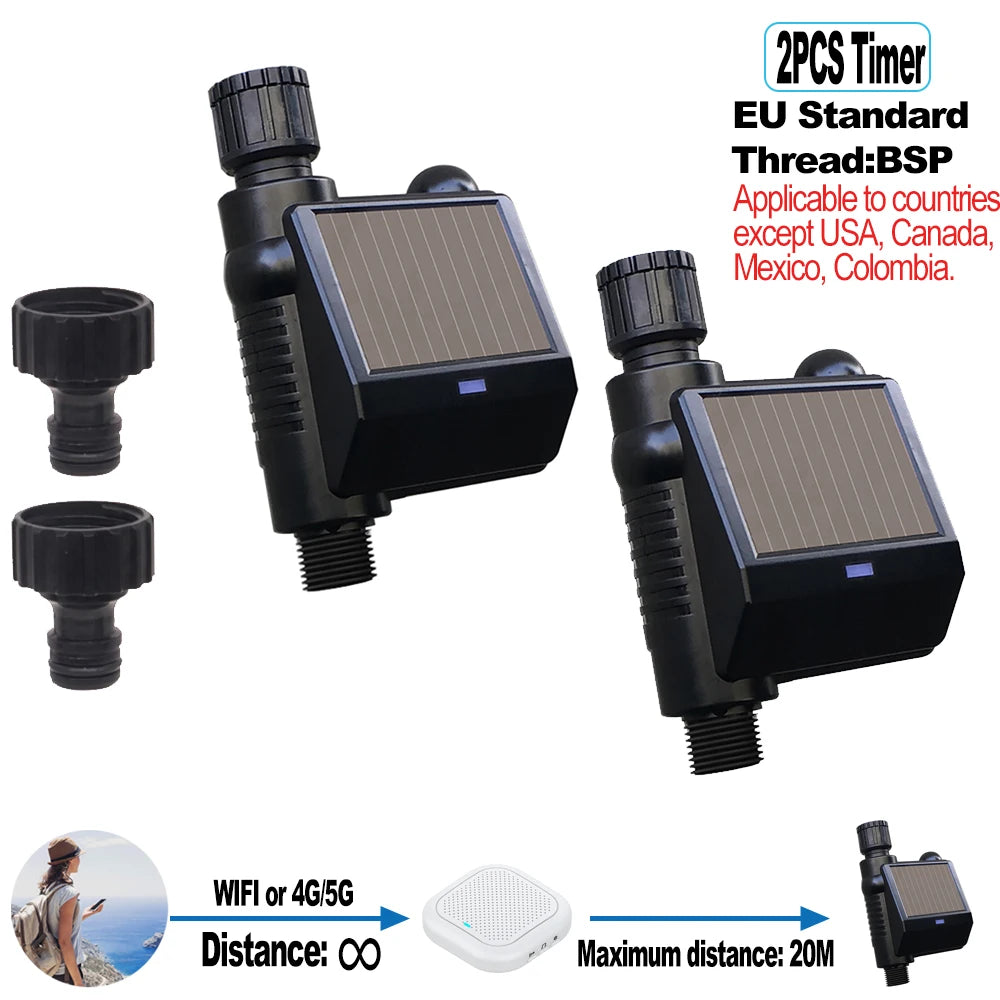

This kit including one wifi water timer and one wifi gateway.

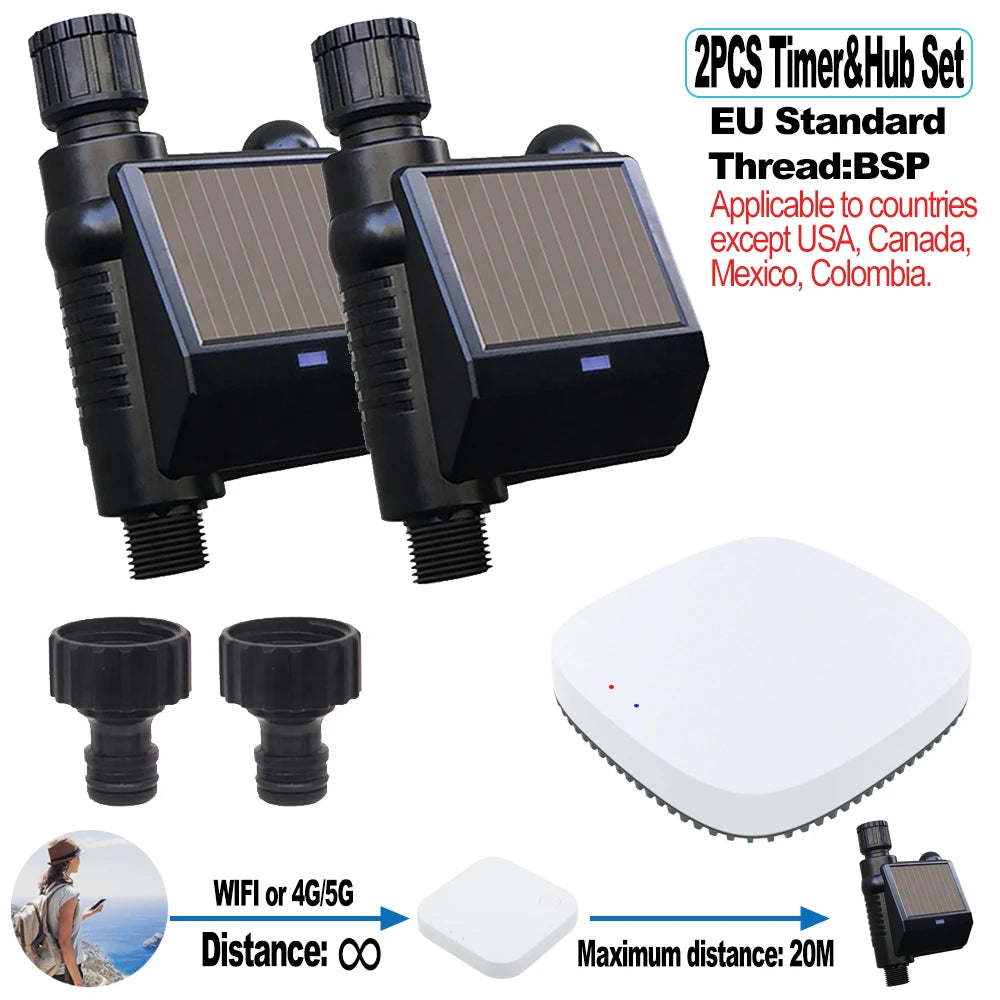

one gateway can pair with max 32 water timers.
Bluetooth communication with wifi gateway and water timer.
Set and check irrigation schedule through smart phone APP.
Manually rain delay function.
manually watering.
Normal timing, cyclic timing for watering.
build-in filter.
Technical Parameter:

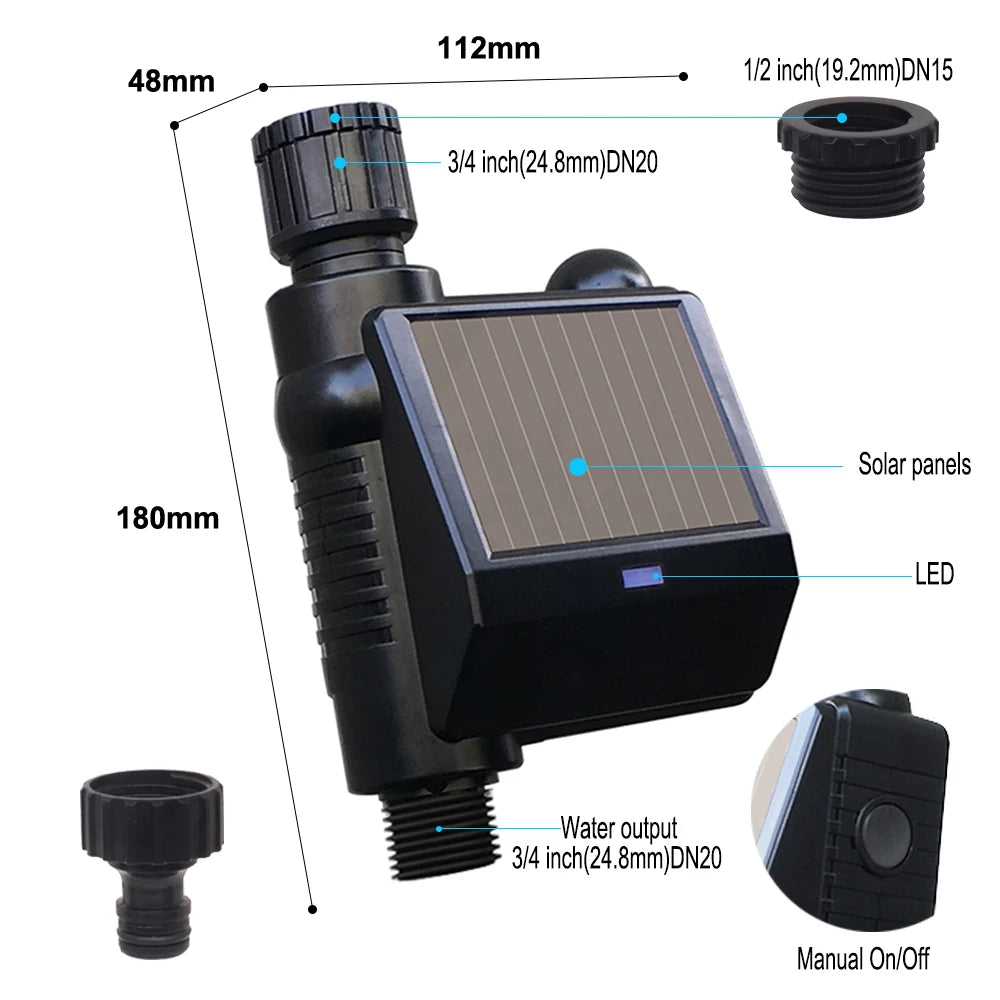

1 inch BSP or 3/4 inch NH inlet.3/4 inch outlet thread.
Working pressure:0.02MPa – 1.6MPa
Max flow:5L/min-35L/min
IP55 water proof
Working temperature 0-50 Celsius
Battery life 6 months
wifi timer power by 2 AA batteries.wifi gaterway power by AC power
irrigation mode:
watering frequency:At least one minute
watering times:No limit
watering duration:from 1 min to 24h
Cyclic mode:
working time:Unlimited
watering time:1 min to 24h
interval timer:1 min to 24h
Product advantages
1. Ball valve can adjust the size of water flow 0%-100%
2. The timer must be connected to the hub
3. According to the local weather, the water valve automatically delays watering (requires a gateway), and the weather delay can also be set manually
4. The timing program is flexible, customers can set multiple sets of timings according to the use scene, up to 15 sets
5. Connect the gateway, cooperate with the humidity sensor, can do scene linkage
6. The product can be used flexibly, it can be used with a gateway or a single water valve
7. The week mode can be selected at regular time, and the use is more user-friendly
8. Cycle timing, can run in a period of time
9. The running time is as small as 1 minute, which is suitable for drip irrigation and spraying scenes.
10. The shell is made of UV resistant material, which will not deform or crack under high temperature
11. The magnetic valve has good sealing performance, no water leakage, and stable performance
