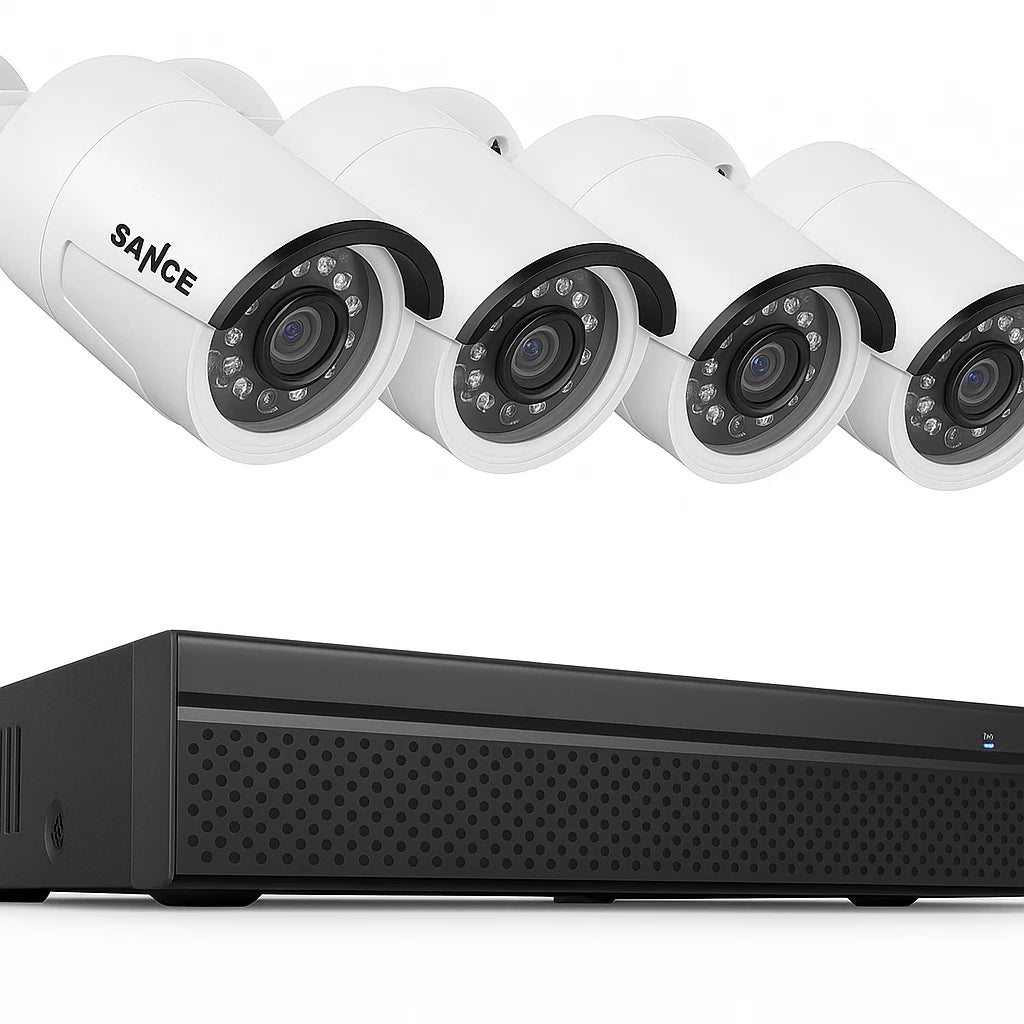

SANNCE 8CH 5MP HD POE Video Security Surveillance Cameras System 4PCS 8MP IP Cameras Outdoor Weatherproof Home CCTV NVR System
SANNCE 8CH 5MP HD POE Video Security Surveillance Cameras System 4PCS 8MP IP Cameras Outdoor Weatherproof Home CCTV NVR System

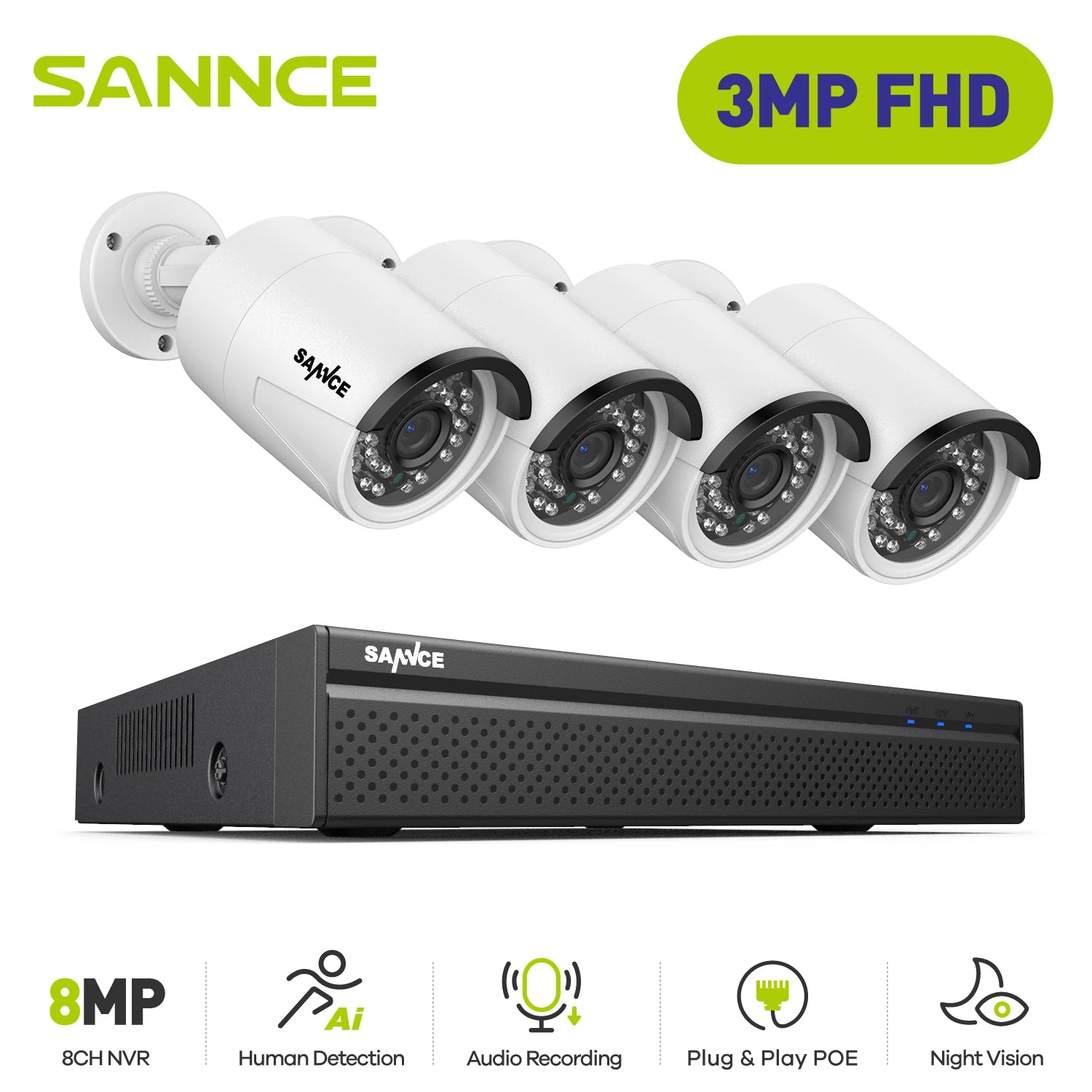

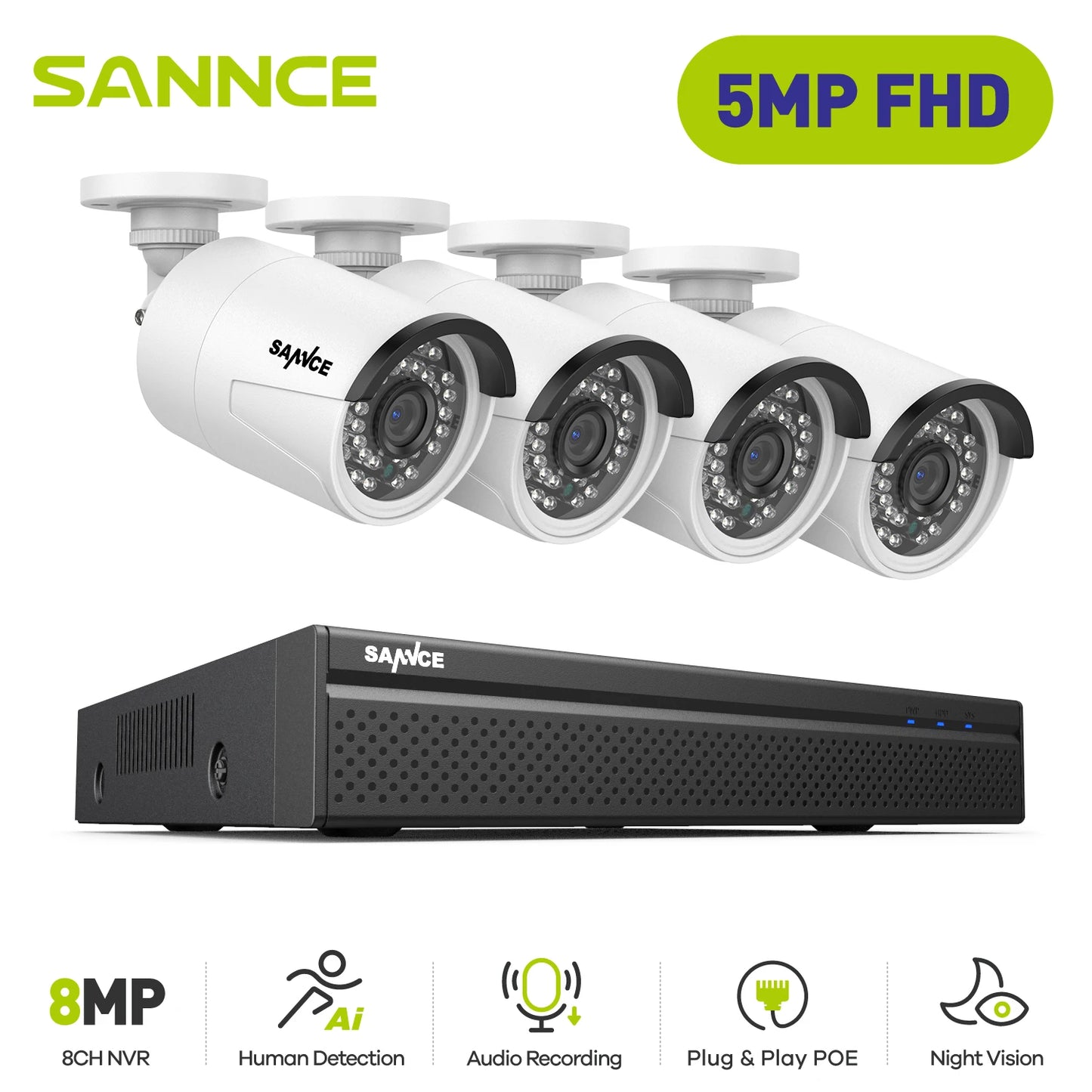

Day & Night 5MP OR 3MP HD Resolution
This PoE security camera system is able to stream 5MP FHD footage onto your mobile devices with superior quality. And the camera’s smart infrared night vision covers up to 100ft/30m; you’re allowed to see everything clearly in the dark.

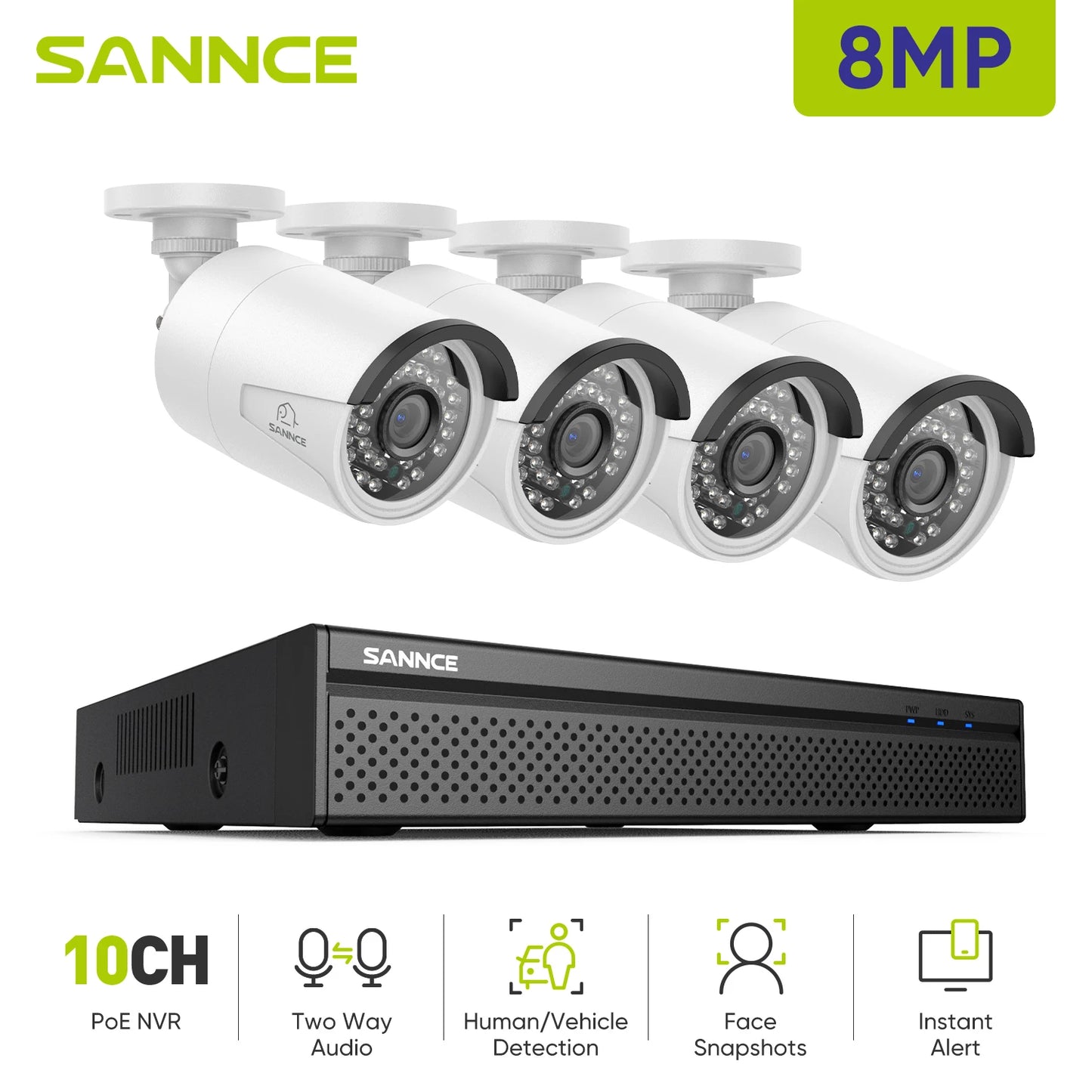

Day & Night 8MP HD Resolution

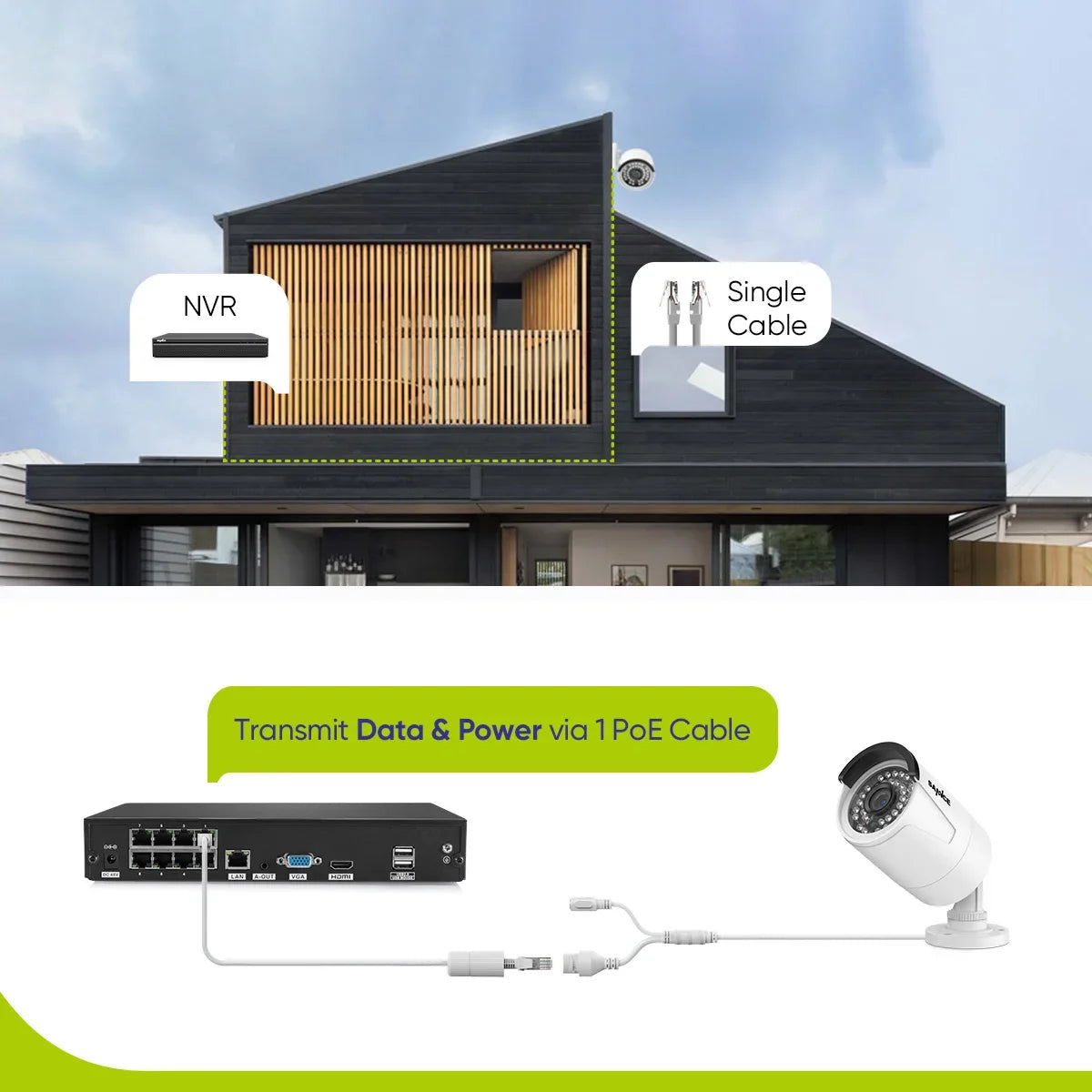

Easy PoE Setup, even for Beginners
Only a single Ethernet cable is needed to transmit video signal and power the camera simultaneously, thus you don’t need to use a separate power adapter to plug each camera into the nearby power supply. Safe, stable and reliable power transmission is always guaranteed.

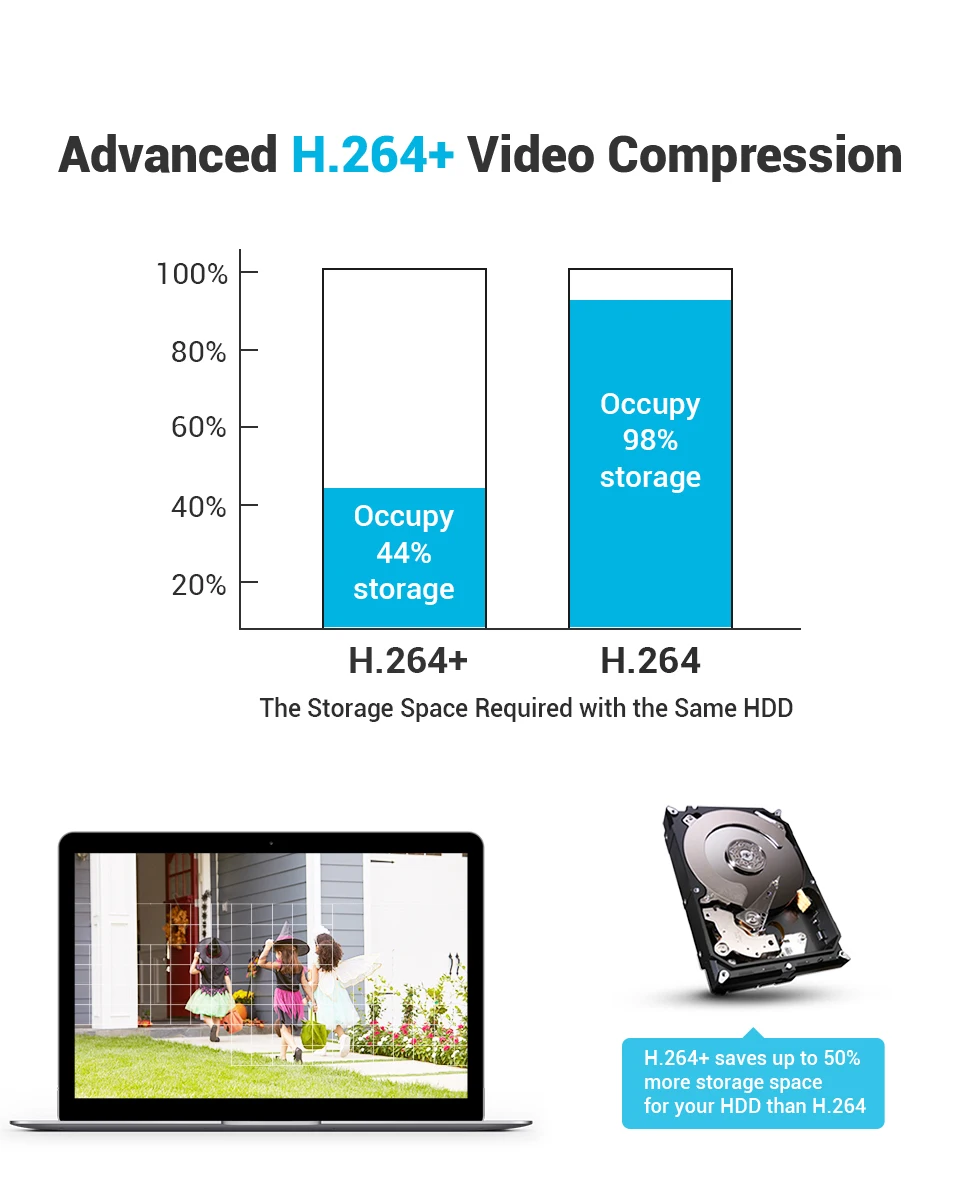

Advanced H.264+ Video Compression
H.264+ greatly improves compression and transmission efficiency, without sacrificing video quality. Compared with H.264, H.264+ reduces network bandwidth and saves up to 50% more disk storage space, thus saves more cost for you.
Smart Motion-Triggered Alerts
With our powerful security system, you can mark out the vital areas for motion detection, like backdoor and garage. Whenever an intruder breaks into these areas, instant email alerts with snapshots and APP push alerts will be sent to you right the first time.

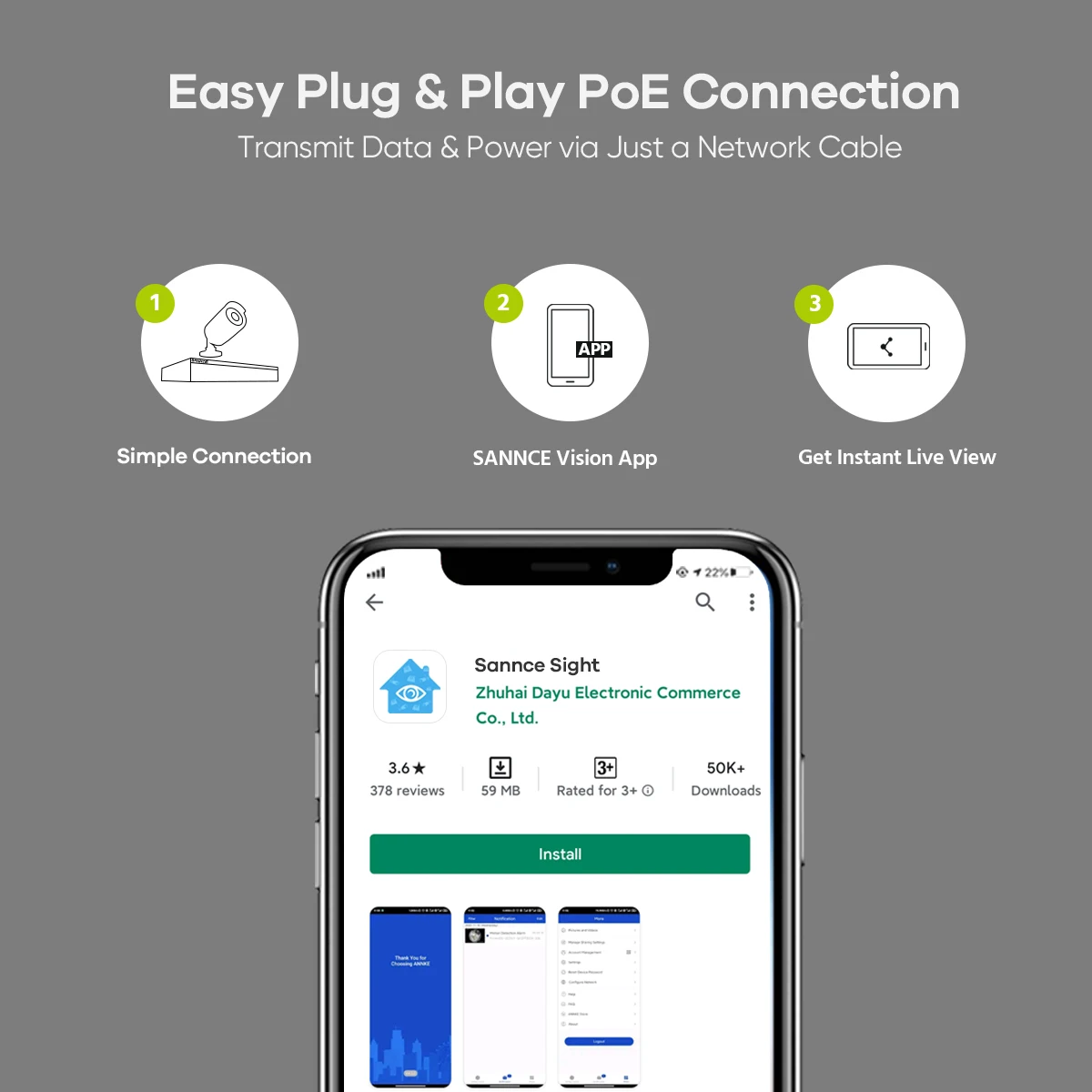

Quick Remote Monitoring
Consolidating your security system into your smartphone, tablet and PC can be quite simple with our free viewing app. Download “Sannce Sight” on your mobile devices, quick scan the QR-code to add the system, then you can watch live video from anywhere in the world.
5MP/3MP Camera Built-in Microphone Captures Voice Signal
The PoE IP cameras are equipped with a high-quality microphone which enables you to hear sound while watching videos. Whether your baby is crying or your dog is barking outside, you can hear everything very clearly.
8MP Camera :

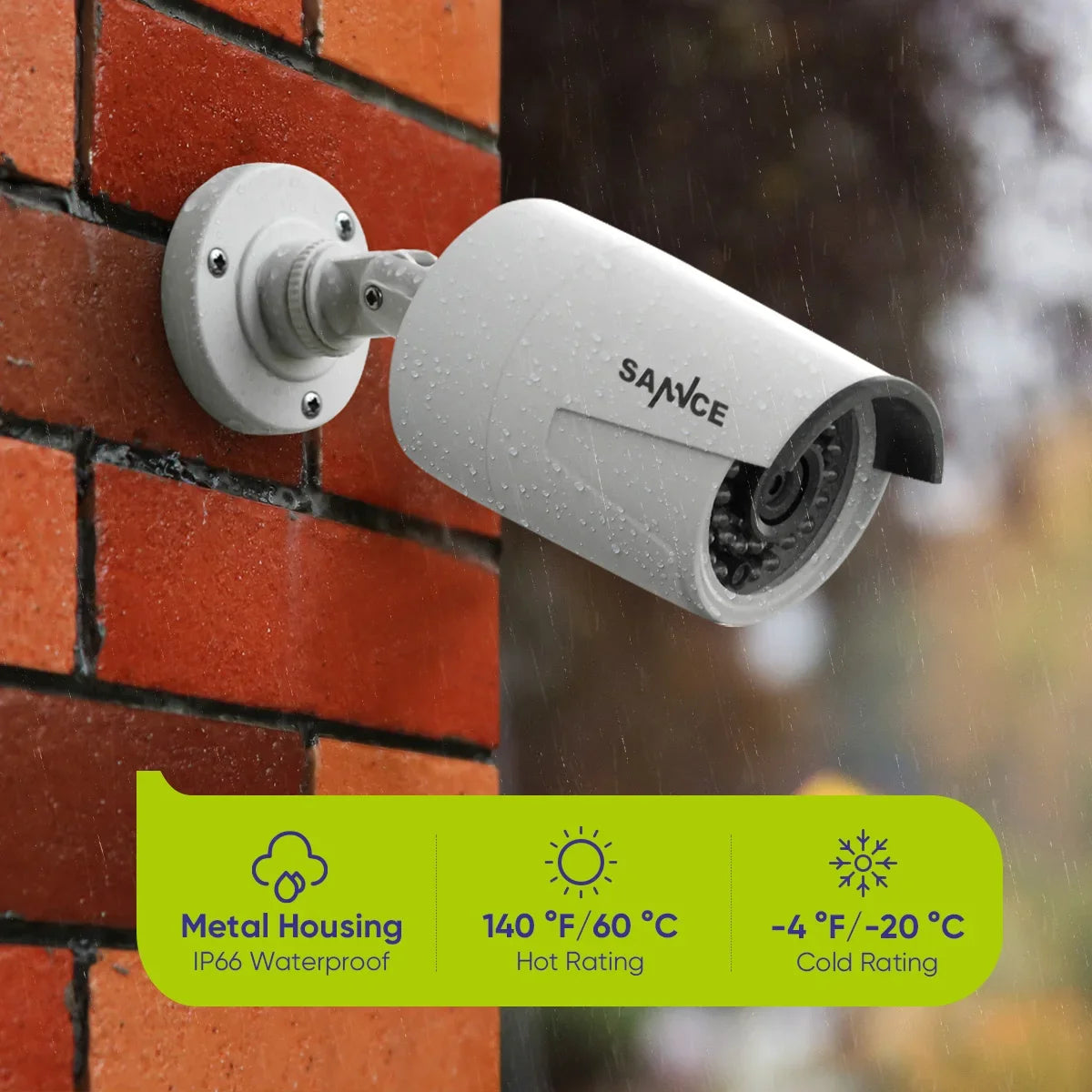

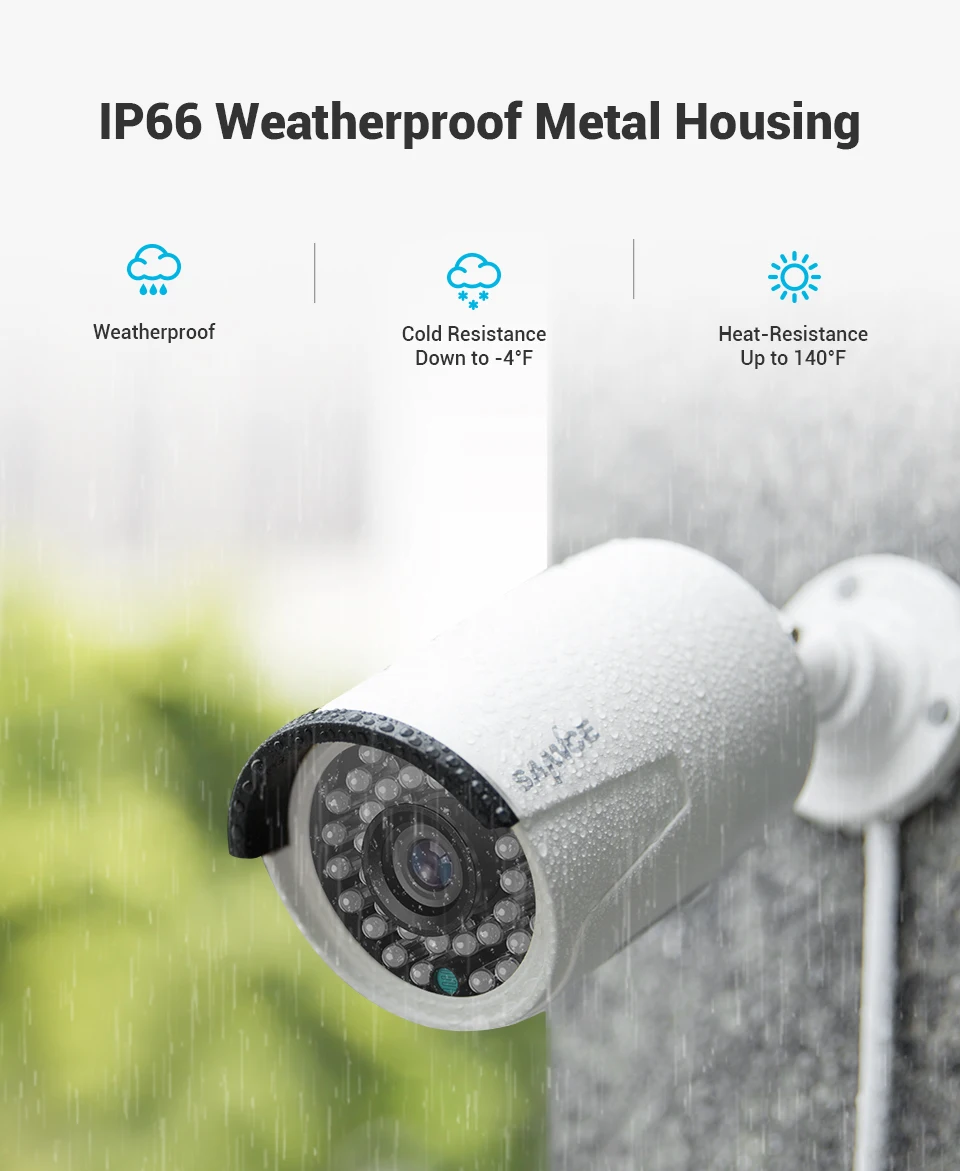

IP66 Weatherproof Metal Housing
The security cameras are durable enough to withstand whatever mother nature brings, even in extreme temperature from -4°F to 140 °F. Encased in airtight heavy-duty metal housing, they have better heat dissipation performance and enjoy long service life.

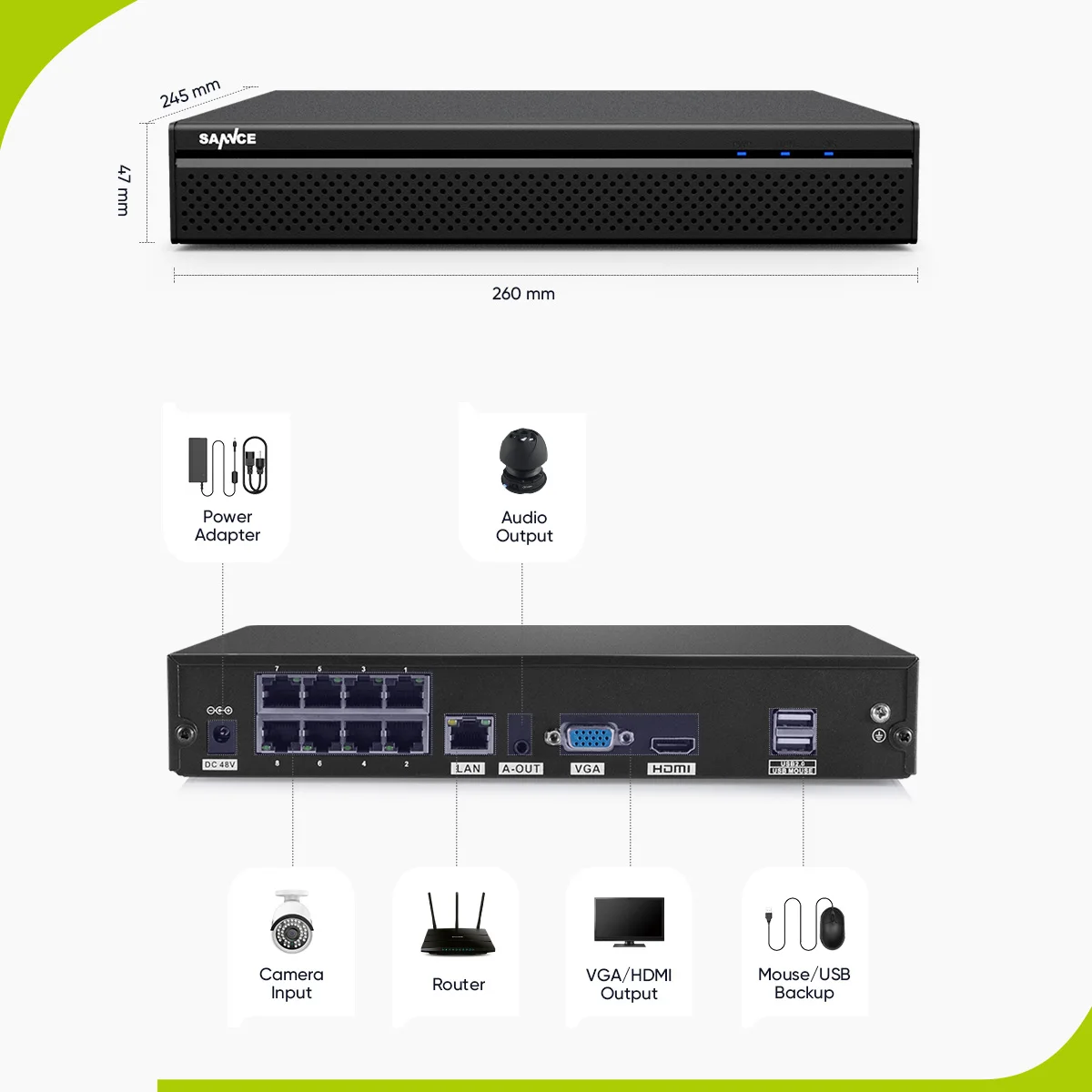

Model Number |
N98PBD-8CH |
|
Video & Audio |
Video Compression |
H.265+ |
IP Video Input |
8CH POE+2CH |
|
Video Output |
HDMI Up to 4K |
|
Audio Output |
Support |
|
Max Recording Resolution |
Up to 8M(3860x2160) |
|
Max Playback Resolution |
Up to 8M(3860x2160) |
|
Max Playback Channel |
4CH |
|
Max Playback Capacity |
4CH 3MP/2CH 5MP/1CH 8MP |
|
Onvif |
Support |
|
Hard Drive |
HDD |
1 SATA interface |
HDD Capacity |
Up to 12TB capacity |
|
External Interface |
Network interface |
RJ45x1(10/100/1000M) |
PoE |
8 Ports(100Mbps, IEEE802.3at/af) |
|
USB |
USB2.0x2 |
|
General |
Housing |
Metal for main part |
Operating Power |
DC48V 2A |
|
Power Consumption |
10W(without HDD) |
|
PoE: Max 30W for single port | ||
Working Temperature |
32 °F – 131 °F /0 °C – 55 °C |
|

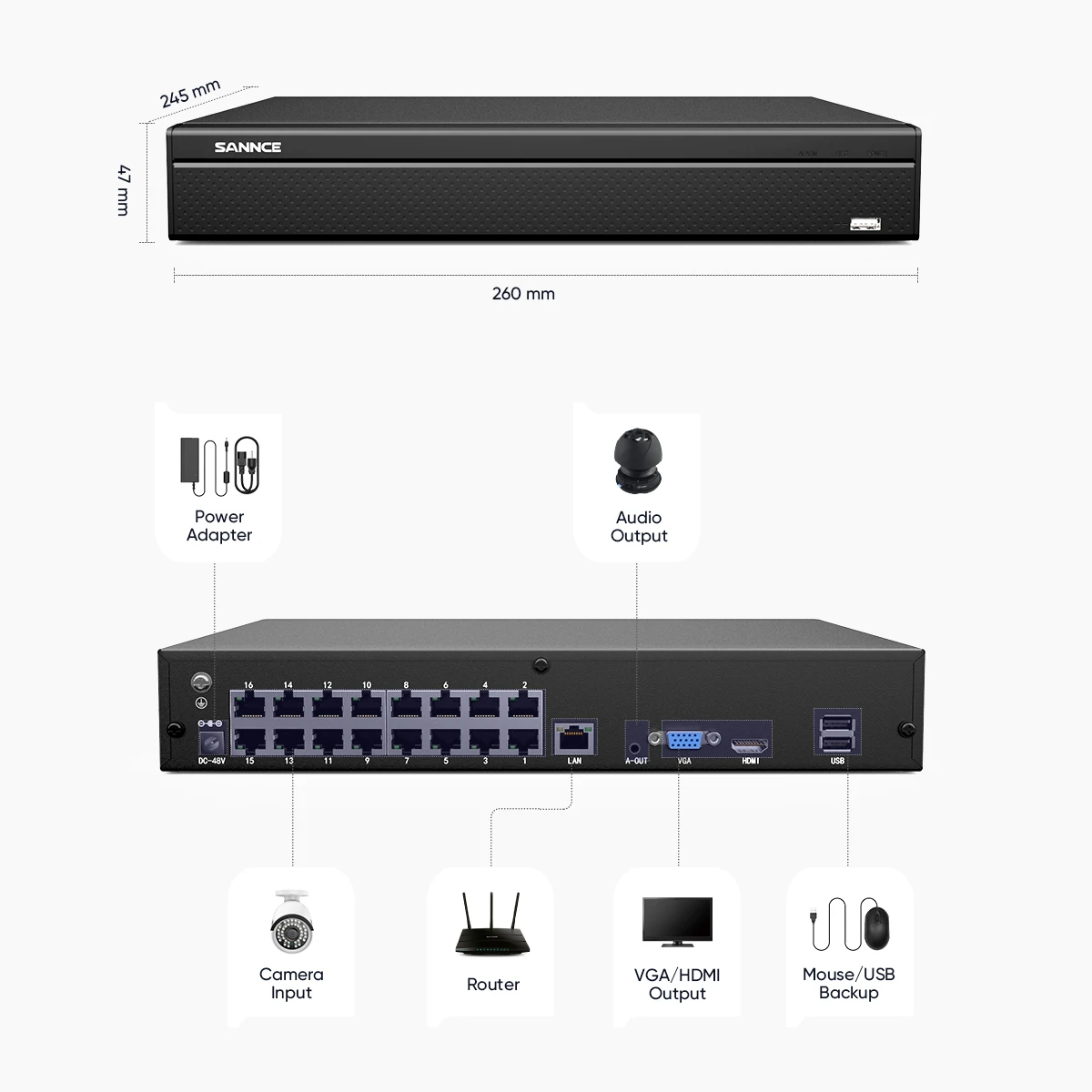

Dimensions(W x H x D) |
260x245x47mm |
|
Weight (without hard disk) |
820g(without HDD) |

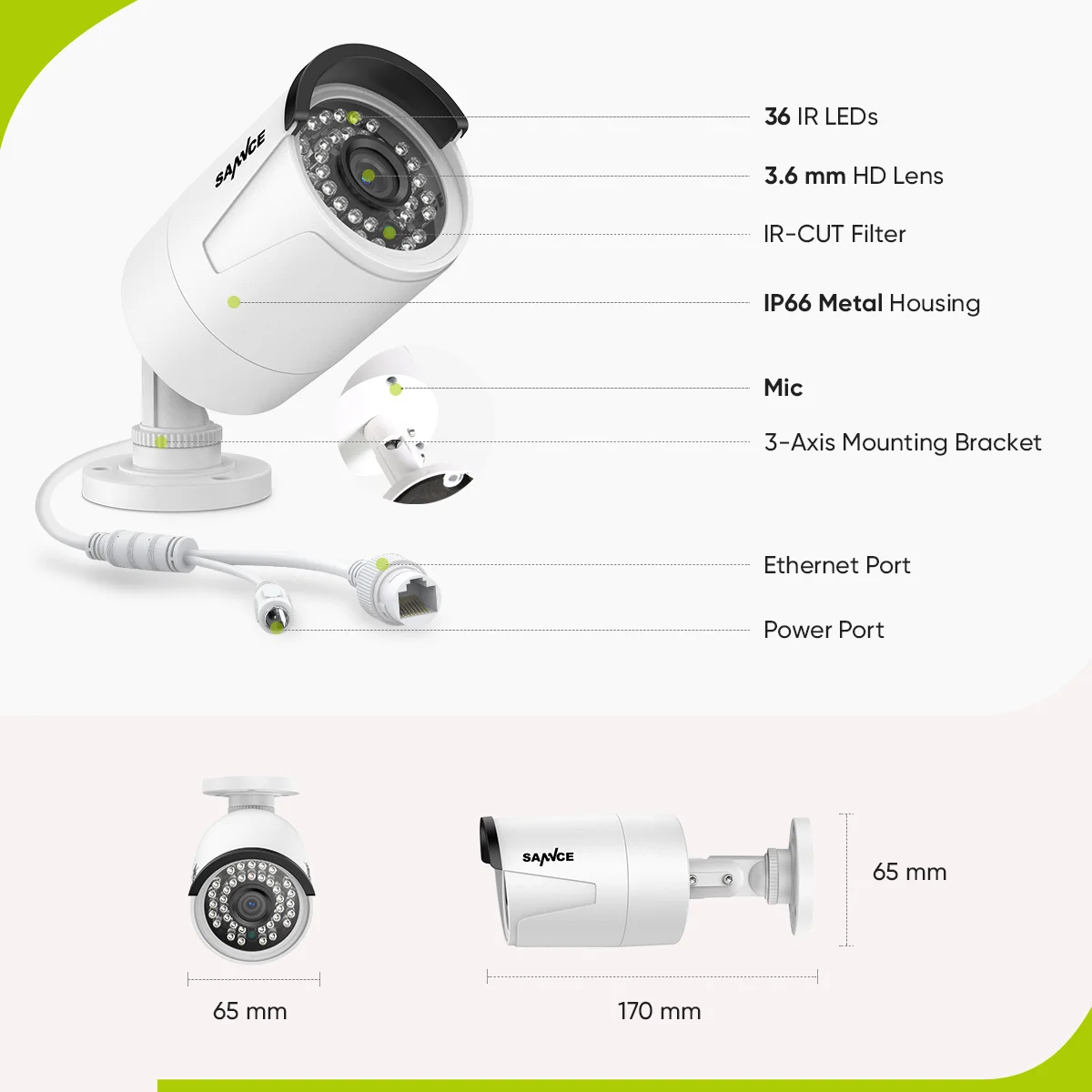

IP Camera-5MP | ||
Camera |
Video Resolution |
5MP(2880x1616) |
Image sensor |
1/2.8" Progressive Scan CMOS |
|
Video compression |
H.265+ |
|
Audio Compression |
G.711A |
|
Lens |
3.6mm |
|
Angle of View |
70° |
|
Number of Infra-Red LEDs |
36 |
|
Night Vision Distance |
Up to 100ft/30m |
|
Wide Dynamic Range |
Digital WDR |
|
IR Cut Filter |
YES |
|
Ethernet |
RJ45x1(10M/100M) |
|
General |
Housing |
Metal |
Operating Power |
DC12V;PoE (802.3af) |
|
Operating Temperature |
-4 °F – 140 °F /-20 °C – 60 °C |
|
Indoor/Outdoor |
Indoor/Outdoor |
|
Weatherproof Rating |
IP66 |
|
Dimension (L x W x H) |
6.7” x 2.6” x 2.6” / 170 x 65 x 65mm |
|
Weight |
0.772lbs / 350g |
IP Camera-3MP | ||
Camera |
Video Resolution |
3MP(2304x1296) |
Image sensor |
1/2.8" Progressive Scan CMOS |
|
Video compression |
H.265+ |
|
Audio Compression |
G.711A |
|
Lens |
3.6mm |
|
Angle of View |
70° |
|
Number of Infra-Red LEDs |
36 |
|
Night Vision Distance |
Up to 100ft/30m |
|
Wide Dynamic Range |
Digital WDR |
|
IR Cut Filter |
YES |
|
Ethernet |
RJ45x1(10M/100M) |
|
General |
Housing |
Metal |
Operating Power |
DC12V;PoE (802.3af) |
|
Operating Temperature |
-4 °F – 140 °F /-20 °C – 60 °C |
|
Indoor/Outdoor |
Indoor/Outdoor |
|
Weatherproof Rating |
IP66 |
|
Dimension (L x W x H) |
6.7” x 2.6” x 2.6” / 170 x 65 x 65mm |
|
Weight |
0.772lbs / 350g |
IP Camera 8MP | ||
Camera |
Video Resolution |
8MP(3840×2160) |
Image sensor |
1/2.7" Progressive Scan CMOS |
|
Video compression |
H.265+ |
|
Audio Compression |
G.711A |
|
Lens |
2.8mm |
|
Angle of View |
105° |
|
Number of Infra-Red LEDs |
36 |
|
Night Vision Distance |
Up to 100ft/30m |
|
Wide Dynamic Range |
Digital WDR |
|
IR Cut Filter |
YES |
|
Ethernet |
RJ45x1(10M/100M) |
|
Onvif |
Support |
|
General |
Housing |
Metal |
Operating Power |
DC12V;PoE (802.3af) |
|
Operating Temperature |
-4 °F – 140 °F /-20 °C – 60 °C |
|
Indoor/Outdoor |
Indoor/Outdoor |
|
Weatherproof Rating |
IP66 |
|
Dimension (L x W x H) |
170 x 65 x 65mm |
|
Weight |
350g |
